Desktop/Pocket CNC V3

Product introduction:

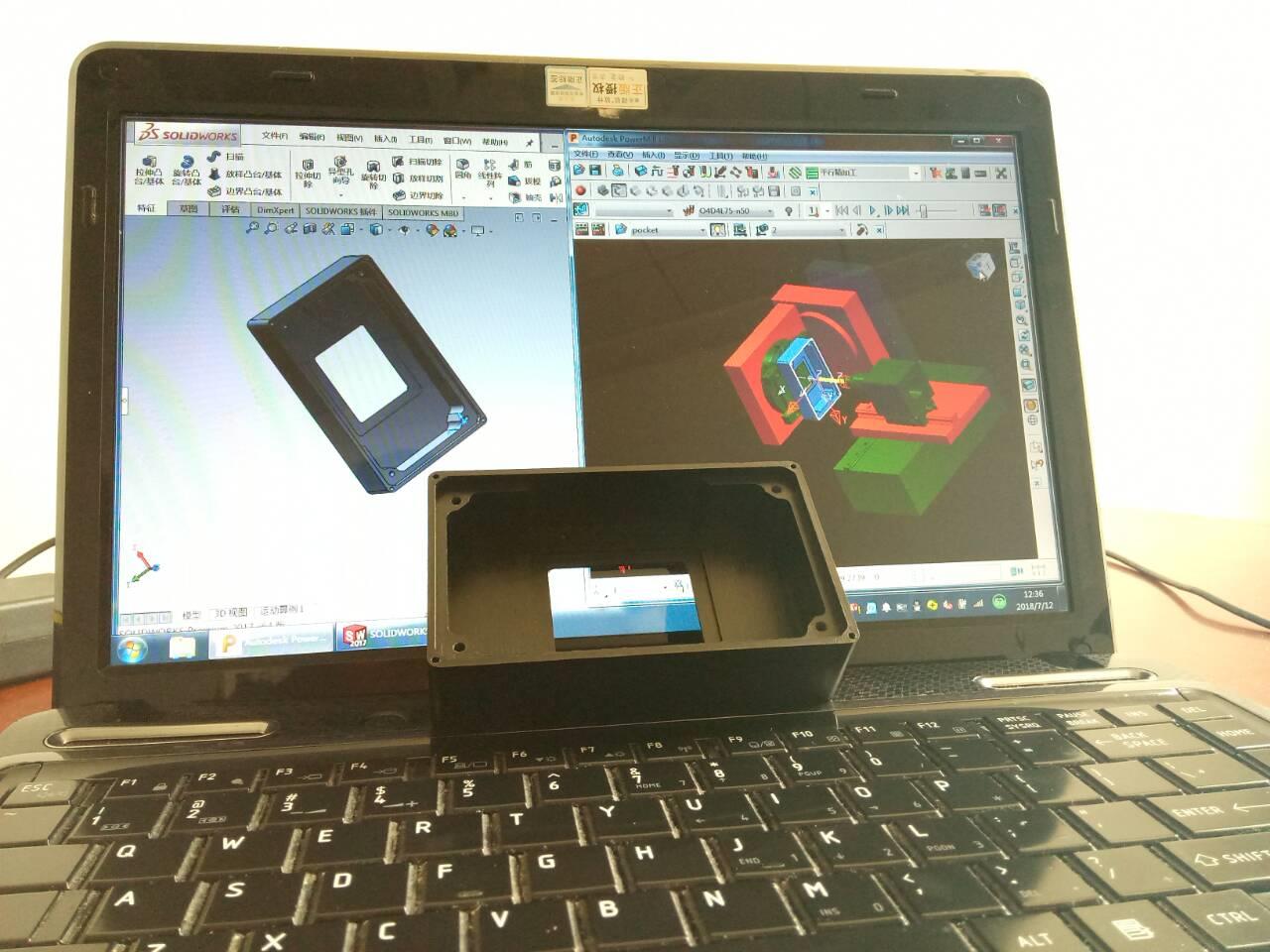

Fit for personal inventor, digital education and low cost production. The Desktop/Pocket CNC can be used everywhere on the table, low cost quick design and easy production Desktop/Pocket CNC is 5 axis digital machine tool. Controlled by Windows system, use CAD or CAM to mill. Desktop NC support G code control as well. As pocket size, five axis motor main axis have speed 0-24000rpm, enough for professional designer basic application.

Service Hotline+86 0575-85121398
  • Product Description

 We are committed to the desktop processing equipment manufacturers, all products will deliver high quality. Welcome to place order


  DESCRIPTION


               Desktop CNC V3

Desktop/Pocket CNC V3

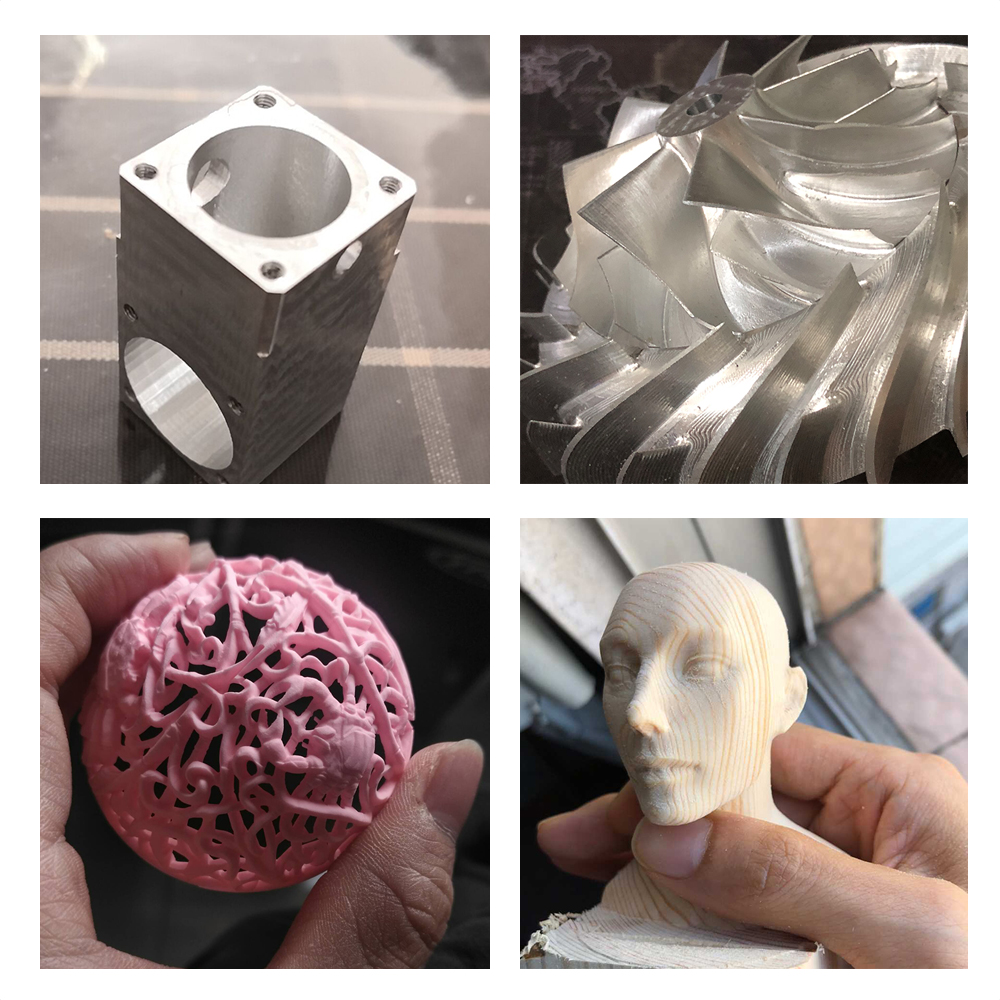

5-axis CNC Engraver (图1)

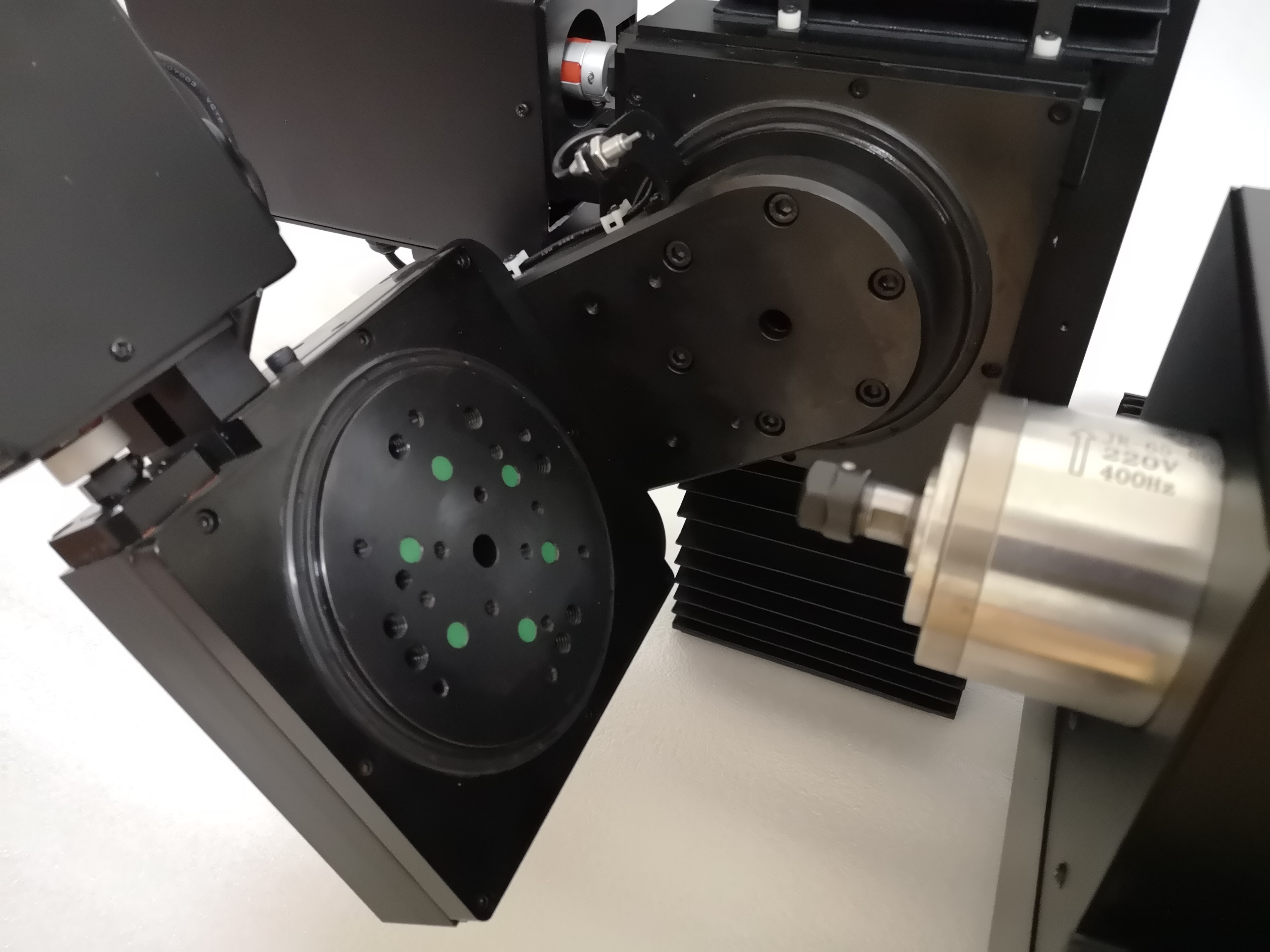

 5-axis CNC Engraver  is upgrade version use No.57 servo motor, normal motor movement speed within 2.5m/min, and

 servo speed can be within 12m/min, servo no noise, high reaction, positioning accuracy, warning with no steps.

5-axis CNC Engraver (图2)

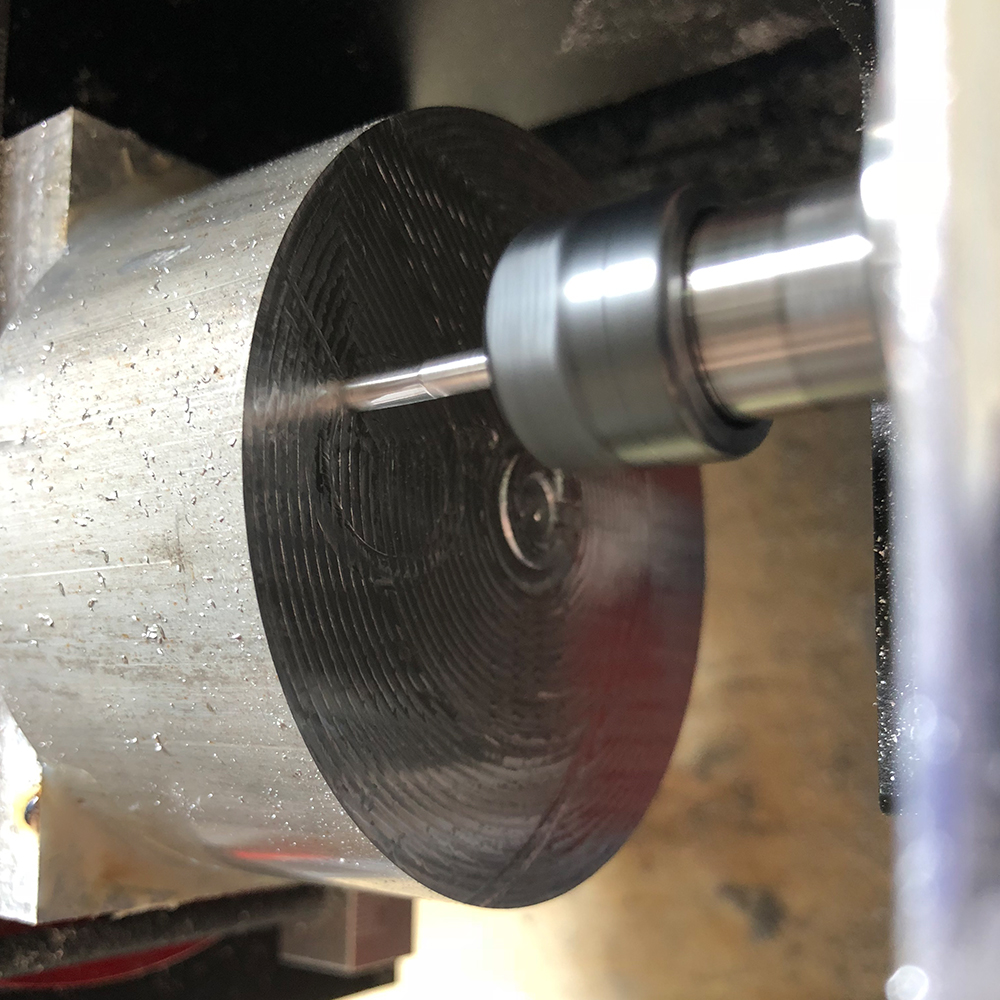

 Desktop NC support to mill material as common plastics, Al alloy, Wood, Copper, Gold, Silver, Wax, different materials

 can use different tool bit, without use wrench, easy operation.

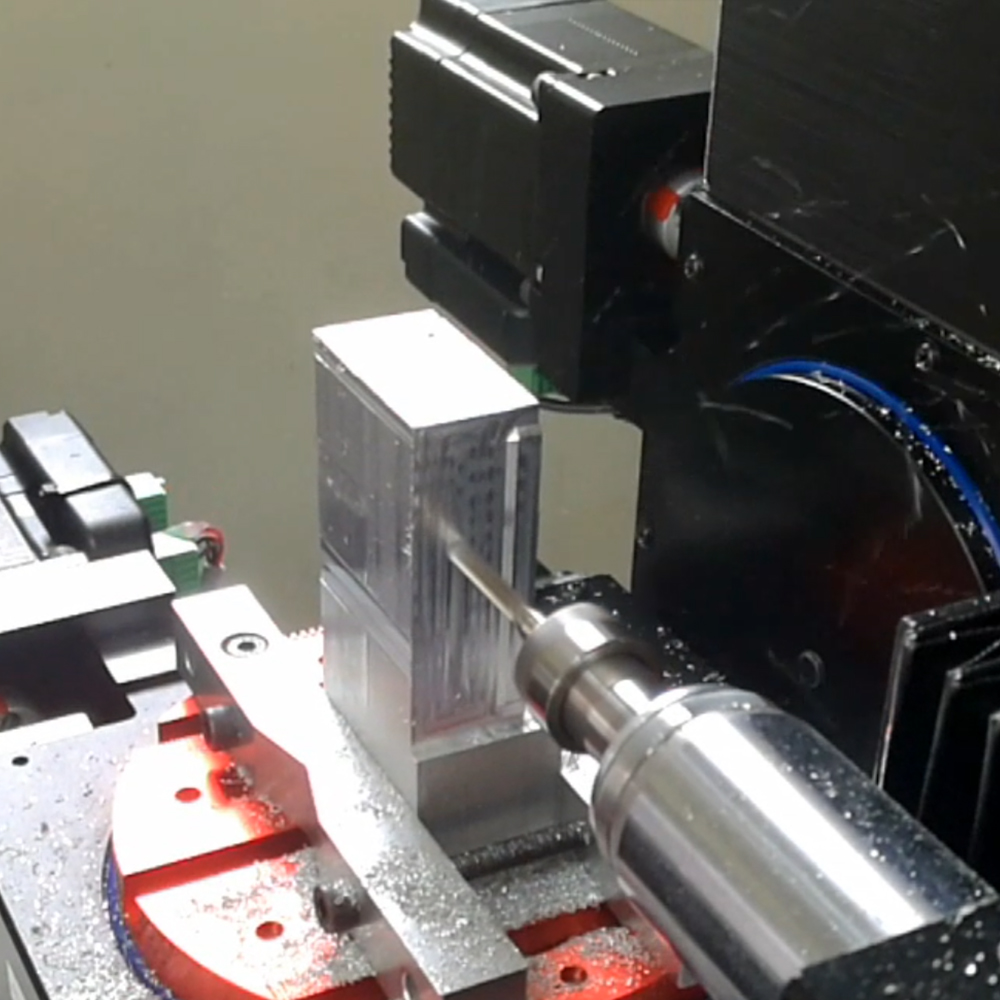

5-axis CNC Engraver (图3)

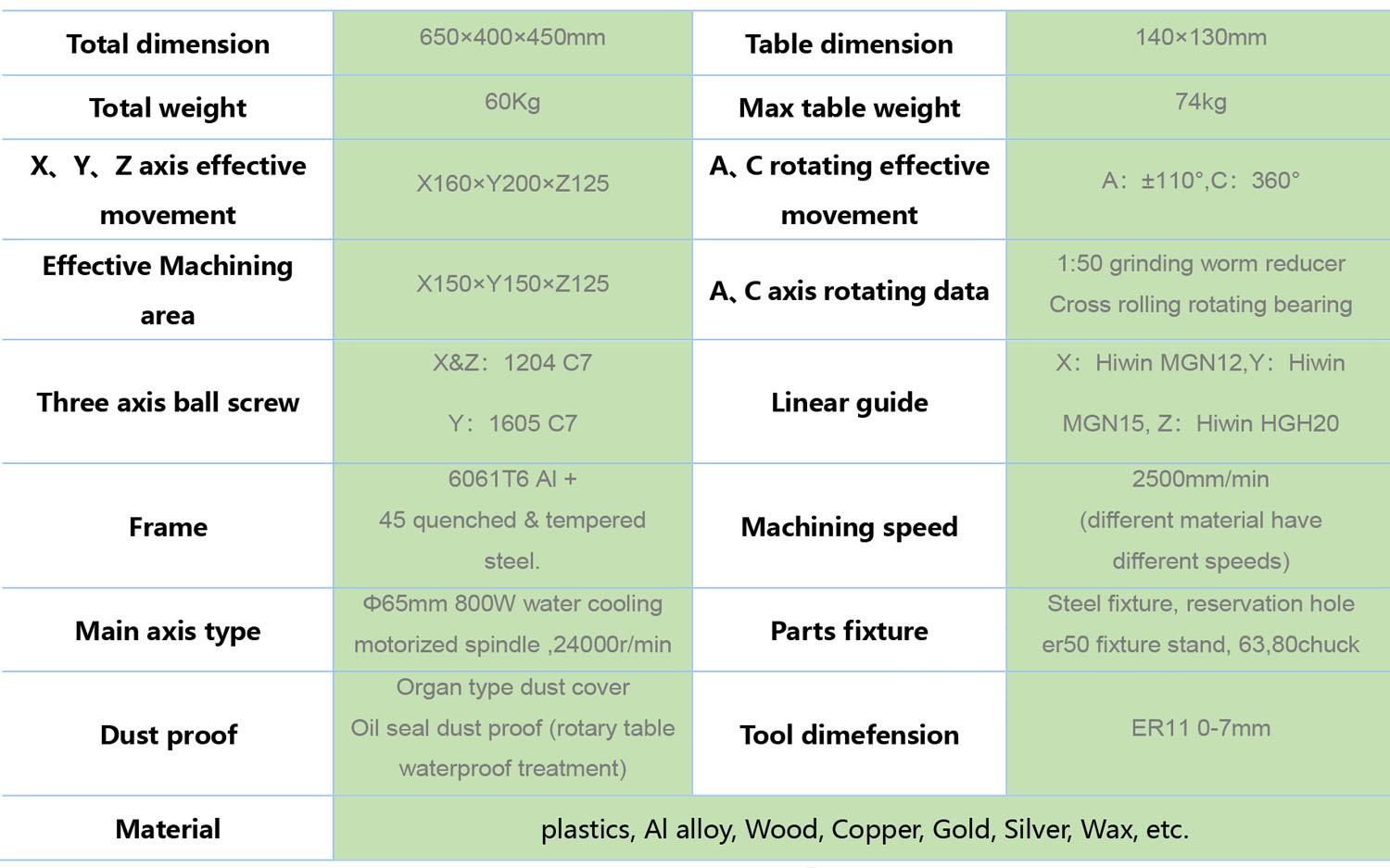

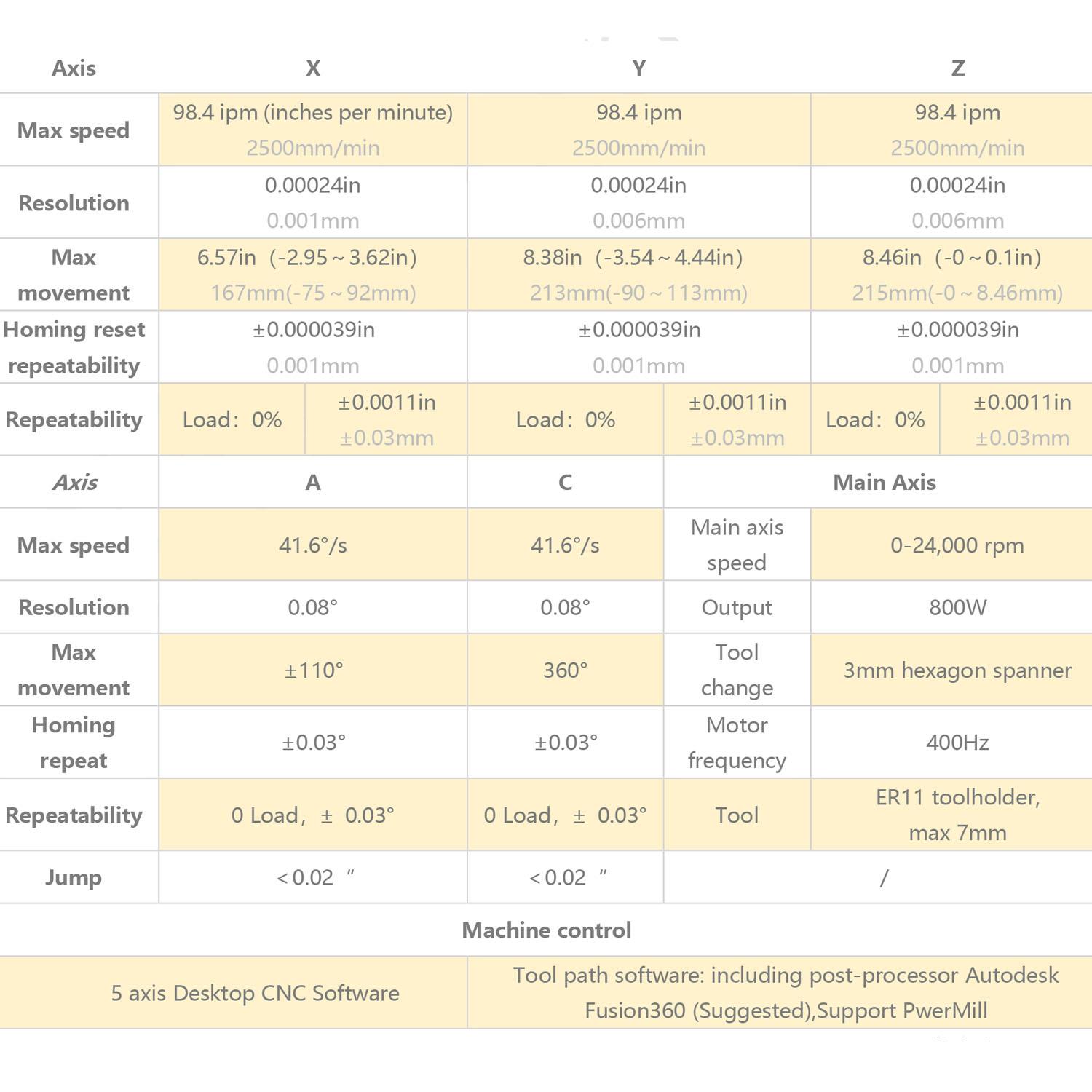

Tech Specs


DNC V3(图1)

DNC V3(图2)



 Metal enclosure V3-Enclosure


 V3 sheet metal shell, color black, 2.5mm thick aluminum plate, 750*500*600mm


5-axis CNC Engraver (图6)

 The rotary is changed from worm gear to harmonic reducer and Z axis from single linear rail to dual linear rails.

 BLDC Servo Motor and C5 Ball Screws, HIWIN Linear Rails are the standard offer.

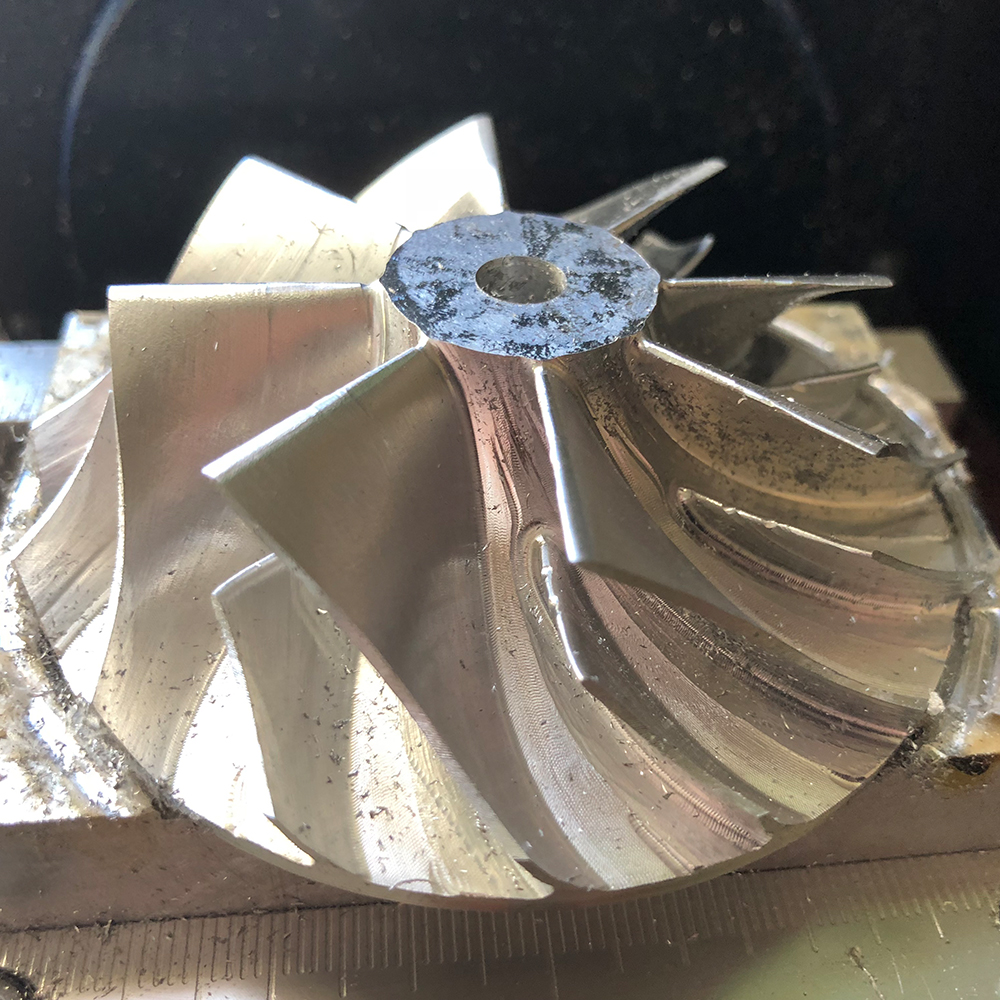

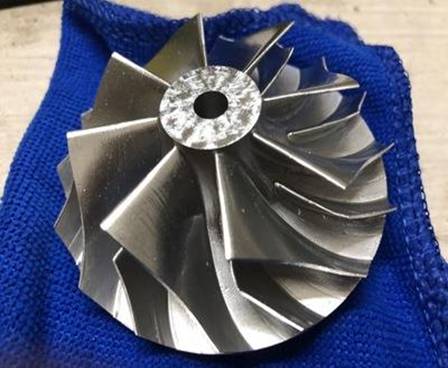

Is this five-axis CNC engraving machine suitable for complex processing?


DNC V3(图4)

DNC V3(图5)


DNC V3(图6)

No matter what you need, please feel free to contact us.

Contact Us : xslightings@xslightings.com


  • The x-axis direction of the print model is offset

    Resolvent:

    1: The synchronous wheel on the x-axis motor is loose and the jacking screw on the lower synchronous wheel is tightened;

    2: The belt is used for a long time and becomes loose. It can be tightened with elastic buckle.

  • How to replace the consumables in printing

    Resolvent:

    When printing filling or supporting, rotate the knob anticlockwise on the main interface of the display screen to adjust the printing rate FR100% to 10%. After the printing speed drops, press and hold the extrusion spring clip to quickly pull out the old consumables, and then load the prepared new consumables into the printer (note that the consumables should be inserted in place). Then adjust the printing rate to 30% - 40% to see if it can print normally, and then adjust the printing rate to 100% after everything is normal.


  • Leveling steps while printing

    Resolvent:

    When printing, rotate the knob anticlockwise to reduce the FR100% (printing rate) on the screen to 30%, and the printing speed will decrease. When printing the bottom layer, you can gently touch the printed consumables to see whether they are glued to the platform. If not, it means that the gap between the nozzle and the platform is too large. Adjust the platform here until the consumables near here can stick to the platform In other places.
